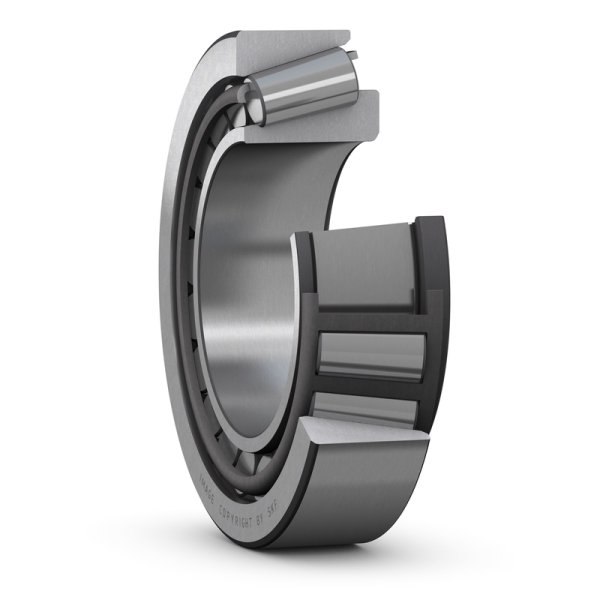

SKF Tapered Roller Bearing LM 603049/011 (45.242MM x 77.788MM x 19.842MM)
In stock
Brand
Part Number : LM 603049/011
MRP:
₹791.25
₹670.55
Special Price
25% off
₹1,055.00
Features / Specifications
- Bore diameter (d) : 45.242mm
- Outside diameter (D) : 77.788mm
- Total bearing width(T): 19.842mm
- Inner ring shoulder diameter(d1): 62mm
- Width inner ring(B): 19.842mm
- Width outer ring(C): 15.08mm
- Corner radius inner ring(r1,2): 3.5mm
- Corner radius outer ring(r3,4): min 3.8mm
- Distance pressure point(a): 17.068mm
- Reference speed: 7000 r/min
- Limiting speed: 8500 r/min
- Mass bearing: 0.37 kg
