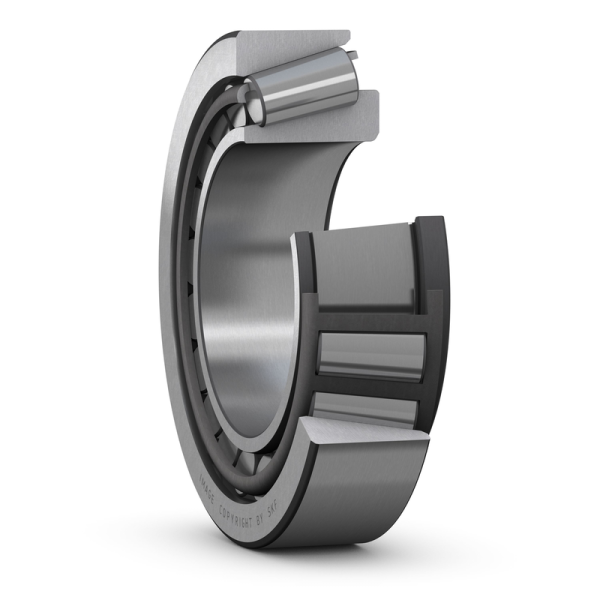

SKF Tapered Roller Bearings 30203 (17MM x 40MM x 13.25MM)
In stock
Brand
Part Number : 30203
MRP:
₹912.00
₹772.88
Special Price
25% off
₹1,216.00
Features / Specifications
- Bore diameter (d) : 17 mm
- Outside diameter (D) : 40 mm
- Total bearing Width (T) : 13.25 mm
- Inner Ring Shoulder diameter(d1):29 mm
- Width Inner Ring(B):12 mm
- Width Outer Ring(C):11 mm
- Corner Radius Inner Ring(r1,2):min 1 mm
- Corner Radius Outer Ring(r3,4):min 1 mm
- Distance Pressure Point(a):9.515 mm
- Reference Speed:15 000 r/min
- Limiting Speed:18 000 r/min
- Mass Bearing:0.079 kg
