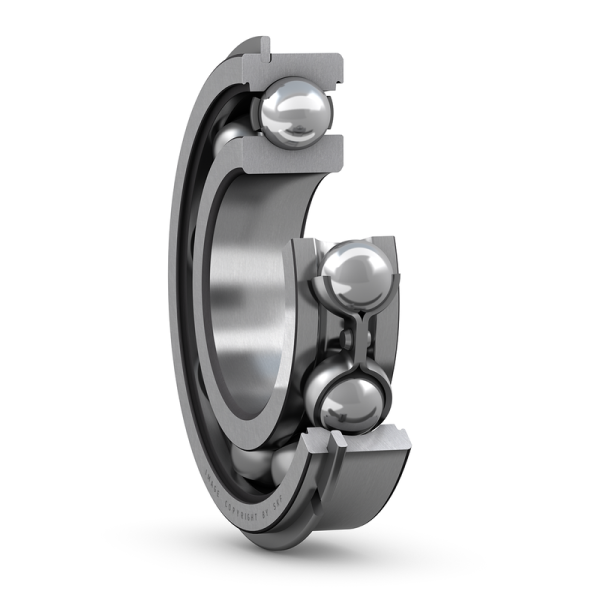

SKF Deep Groove Ball Bearings 6305 NR (25MM x 62MM x 17MM)
In stock
Brand
Part Number : 6305 NR
MRP:
₹806.25
₹683.26
Special Price
25% off
₹1,075.00
Features / Specifications
- Bore diameter(d): 25 mm
- Outside diameter(D): 62 mm
- Width(B): 17 mm
- Shoulder diameter(d1):36.6 mm
- Recess diameter(D2):52.7 mm
- Diameter of snap ring groove(D3):59.61 mm
- Outside diameter of snap ring(D4):67.7 mm
- Width of snap ring groove(b):1.9 mm
- Distance outer ring from side face to face snap ring groove(C):3.28 mm
- Width of snap ring(r):1.7 mm
- Bottom radius of snap ring groove(ro):max. 0.6 mm
- Chamfer dimension(r1,2):min. 1.1 mm
- Reference speed:24000 r/min
- Limiting speed:16000 r/min
- Mass bearing:0.23kg
