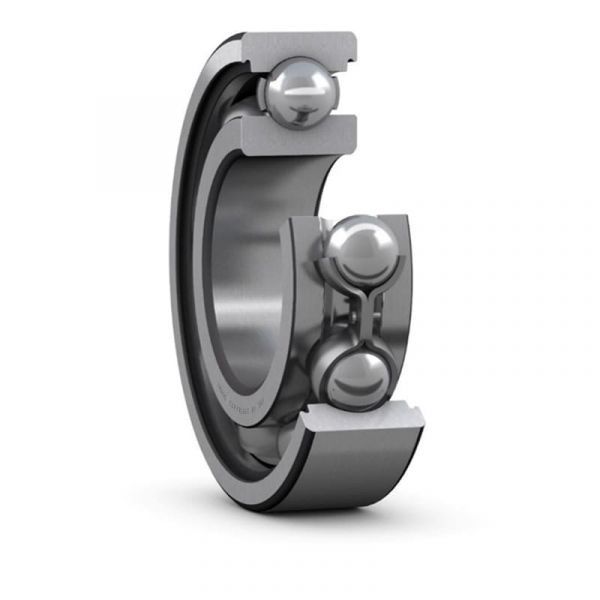

SKF Deep Groove Ball Bearing 6007-2RS1 (35MM x 62MM x 14MM)
In stock
Brand
Part Number : 6007-2RS1
MRP:
₹429.60
₹364.07
Special Price
20% off
₹536.99
Features / Specifications
- Bore diameter (d) : 35 mm
- Outside diameter (D) : 62 mm
- Width (B) : 14mm
- Shoulder diameter(d1):43.75mm
- Recess diameter(D2):55.61mm
- Chamfer dimension(r1,2):min. 1mm
- Limiting speed: 7 000 r/min
- Mass bearing: 0.16 kg
* Required
Tool Description
| da | min. 39.6 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 43.7 mm | Diameter of shaft abutment |
| Da | max. 57.4 mm | Diameter of housing abutment |
| ra | max. 1 mm | Radius of shaft or housing fillet |
| Basic dynamic load rating | C | 16.8 kN |
|---|---|---|
| Basic static load rating | C0 | 10.2 kN |
| Fatigue load limit | Pu | 0.44 kN |
| Limiting speed | 7 000 r/min | |
| Minimum load factor | kr | 0.025 |
| Calculation factor | f0 | 15 |
| Mass bearing | 0.16 kg |
