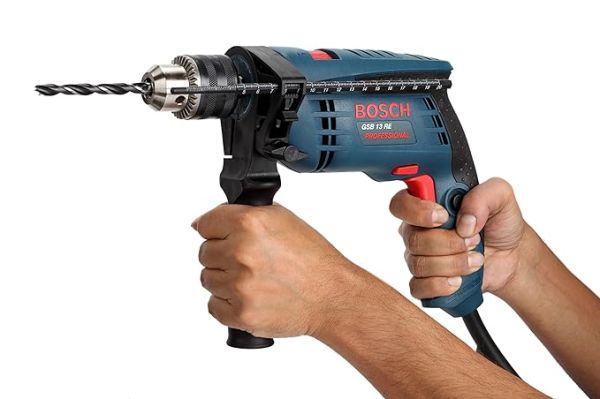

BOSCH 06012171F6 GSB 13 RE Kit Impact Drills

Additional data

• Rated input power - 600 W
• Weight - 1.8 kg
• No-load speed, 1st gear - 0 – 2,800 rpm
• Power output - 301 W
• Rated torque - 1.8 Nm
• Drill spindle connecting thread - 1/2"-20 UNF
• Chuck capacity, min./max. - 1.5 – 13 mm
• Tool dimensions (length) - 266 mm
• Tool dimensions (height) - 180 mm
• Impact rate at no-load speed - 0 – 44,800 bpm

Drilling range

• Drilling diameter in wood - 25 mm
• Drilling diameter in steel - 10 mm
• Drilling diameter in masonry - 15 mm

Total vibration values (Drilling in metal)

• Vibration emission value ah - 1.5 m/s²
• Uncertainty K - 3 m/s²

Total vibration values (Impact drilling in concrete)

• Vibration emission value ah - 3 m/s²
• Uncertainty K - 26 m/s²

Total vibration values (Screwdriving)

• Vibration emission value ah - 1.5 m/s²
• Uncertainty K - 2.5 m/s²

Noise/vibration information

• Sound pressure level - 97 dB(A)
• Sound power level - 108 dB(A)
• Uncertainty K - 5 dB

Drilling in metal

• Vibration emission value ah - 1.5 m/s²
• Uncertainty K - 3 m/s²

Impact drilling in concrete

• Vibration emission value ah - 3 m/s²
• Uncertainty K - 26 m/s²

Screwdriving

• Vibration emission value ah - 1.5 m/s²
• Uncertainty K - 2.5 m/s²
